Wedge Wire Screen Filter Nozzle

Item No.: 22
The wedge wire nozzle features non-clogging, high filtering efficiency, and is economical. It has a wide range of applications in water treatment applications.
Description
Description
Wedge wire filter nozzles are made from V-shaped profile wire, which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded, with a unique welding process. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines. The pitch of winding gives different spacing between two adjacent turns of wire.

The Details of Wedge Wire Filter Nozzle

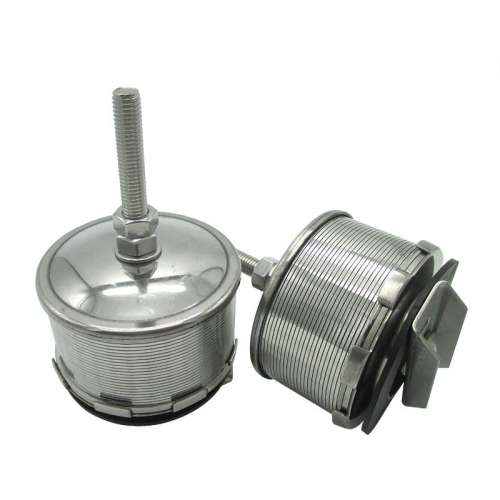

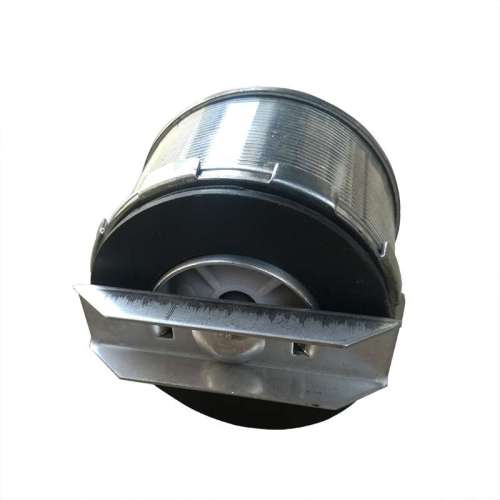

Single Flow Rating Filter NozzleDouble Flow Rating Filter Nozzle

Our Water Filter Nozzle is composed of V-profile wire stainless steel which is spirally wrapped in a certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of the nozzle. Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of the set bottom plate. The nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

Advantage of Wedge wire filter nozzle:

1) Material: 304, 304L, 316, 316L, 2507, Hastelloy, etc as your requirements.
2) Continuous slot design provides a large circulation area
3) The standard nozzle is 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4) Standard slot opening typically ranges between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5) The wedge wire screen is highly resistant to plugging.
6) Unaffected by temperature, corrosion-resistant, aging resistant, long life span, easy change, safety, and environmentally friendly.
7)Widely used in water softening treatment equipment, breweries Filtration, Sizing and separation, Fluid bed dryers or coolers, Washing, etc.


Specification of Filter Nozzle


Type
Slot (mm) Dimension Flow Rating (M3/H)
D(mm) H(MM) L(MM) Thread Fittings
YUBO-0.5 0.25 45 45 90/request

M, NPT,
G, PT, Z,
request


SS Gasket, Rubber gasket, Nut, or as your requirement
0.5
YUBO-1.0 0.25 53 45 90/request 1.0
YUBO-1.5 0.25 57 45 90/request 1.5
YUBO-2.0 0.25 57 55 100/request 2.0
YUBO-2.5 0.25 70 55 100/request 2.5
YUBO-3.0 0.25 70 70 120/request 3.0



Note
  • All the above size are the normal size. Customized size is possible.
  • YUBO could help to design according to the application and requirement.
  • The nozzles customized range as below:
  1. Slot range: 0.05-2mm
  2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application
  3. Thread, gasket, nut according to requirement


Packaging

Every filter nozzle will be covered with a plastic protective film, and then put into a wooden box, tightly packed, not afraid of extrusion, finish to ship.
Single and Double Flow Rating Filter Nozzle



Application:

It is usually used in Sizing and separation, Fluid bed dryers or coolers, Washing, etc, and it is the better choice for oil, water treatment, Sugar factory, power plant,industry filtration
Single and Double Flow Rating Filter Nozzle
